Original price was: KSh6,000.00.KSh3,000.00Current price is: KSh3,000.00.
50A High-Charging Capacity: Designed to manage up to 50 Amps of current, making it the perfect choice for medium-sized solar arrays powering homes, RVs, and off-grid cabins.
12V/24V/48V Auto-Detection: Intelligently recognizes your battery bank voltage (12V, 24V, or 48V) and automatically configures charging parameters for a hassle-free, “plug-and-play” installation.
Advanced MPPT Efficiency (Up to 98%): Features Maximum Power Point Tracking (MPPT) technology that harvests up to 30% more energy from your panels compared to standard PWM controllers, even in cloudy conditions.
Multi-Battery Chemistry Support: Compatible with a wide range of battery types, including Lithium (LiFePO4), Sealed Lead-Acid (AGM), Gel, and Flooded batteries, with customizable charging profiles.
Intelligent 3-Stage Charging: Extends battery life using a sophisticated Bulk, Absorption, and Float algorithm that prevents overcharging and minimizes internal sulfation.
Full Electronic Protection: Built-in safeguards against reverse polarity, short circuits, PV over-voltage, battery deep discharge, and night-time reverse current leakage.
Real-Time LCD Monitoring: Features a high-definition backlit display that provides at-a-glance data on battery voltage, charging amperage, ambient temperature, and system faults.
Dual USB 5V Output: Includes two integrated USB ports (typically 5V/2A) to charge smartphones, tablets, or other small DC gadgets directly from the solar array.
Temperature Compensation: Automatically adjusts the charging voltage based on the surrounding environment to ensure batteries stay healthy in both extreme heat and cold.
Industrial-Grade Heat Dissipation: Housed in a durable casing with a large aluminum heat sink to maintain optimal performance and prevent overheating during high-current operation.

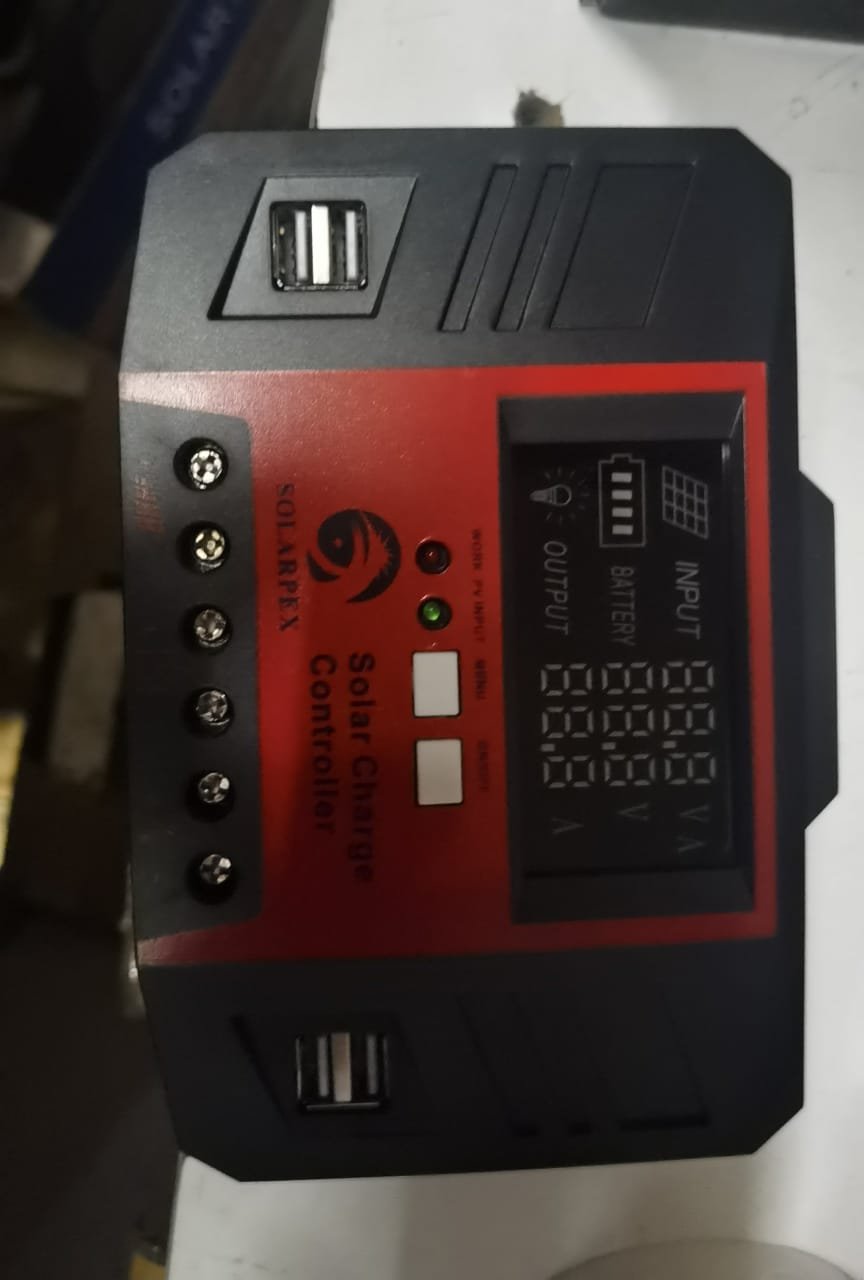

Maximize the potential of your solar array with the 50A Solar Charge Controller, a high-performance regulator designed for medium-to-large scale energy systems. Engineered to manage up to 50 Amps of charging current, this controller serves as the essential link between your solar panels and battery bank, ensuring every watt of sunshine is converted into usable, safe power.
Whether you are upgrading a home backup system, powering a remote cabin, or managing an agricultural solar pump, the 50A controller provides the robust capacity needed to handle up to 2800W of solar input (on 48V systems). It is the perfect balance of high power and precision, protecting your batteries from the common causes of premature failure.
This 50A controller is available in two distinct technologies to suit your specific budget and climate:
50A MPPT (Maximum Power Point Tracking): The industry leader in efficiency. It “tracks” the optimal voltage of your panels to squeeze out up to 30% more power than standard controllers. Ideal for larger arrays and areas with variable cloud cover.
50A PWM (Pulse Width Modulation): A dependable, cost-effective solution for smaller systems where the solar panel voltage is closely matched to the battery voltage. Perfect for sunny regions and budget-friendly installations.
| Feature | 12V System | 24V System | 48V System |
| Max. Solar Input Power | ~600W – 700W | ~1200W – 1400W | ~2400W – 2800W |
| Max. PV Input Voltage | Up to 150V (MPPT) | Up to 150V (MPPT) | Up to 150V (MPPT) |
| Rated Charge Current | 50 Amps | 50 Amps | 50 Amps |
| Battery Compatibility | Lead-Acid (Sealed, Gel, Flooded), AGM, Lithium (LiFePO4) | ||
| Conversion Efficiency | 98% (MPPT) | 98% (MPPT) | 98% (MPPT) |
| USB Output | 5V / 2A (Dual Ports) |
Save time and reduce installation errors. This controller features Intelligent Auto-Recognition, automatically identifying your battery bank’s voltage and adjusting its charging parameters instantly. It provides a seamless “plug-and-play” experience for systems of various sizes.
To protect your expensive battery investment, the controller uses a multi-stage charging algorithm:
Bulk: High-speed charging until the battery reaches roughly 80%.
Absorption: Constant voltage charging to safely top off the remaining capacity.
Float: Low-level maintenance charge to keep the battery at 100% without gassing.
Equalization: Periodic “cleaning” of lead-acid plates to prevent sulfation.
Safety is built-in. The 50A controller guards your home and hardware with:
Reverse Polarity Protection: Prevents damage if wires are crossed.
Over-Voltage & Overload Protection: Shuts down safely if solar input or load exceeds limits.
Night-Time Reverse Current Prevention: Stops your batteries from draining back into the panels at night.
Temperature Compensation: Adjusts charging voltage based on ambient temperature to prevent overheating in hot climates.
The backlit digital display offers real-time monitoring of your system’s performance. At a glance, you can track battery voltage, solar input amperage, temperature, and even total energy harvested (kWh) over time.
The 50A capacity is the “sweet spot” for many users. It is large enough to support four 300W–350W panels on a 24V system or a massive eight panels on a 48V system. This makes it ideal for:
Whole-Home Backup: Powering lights, TVs, fridges, and computers.
RV & Marine Use: Managing high-capacity roof-mounted solar arrays.
Commercial CCTV/Telecom: Providing steady power for remote monitoring stations.
100% genuine and certified products.
Manufacturer-backed warranty on all products.
Fast, reliable delivery to all regions nationwide.
