Original price was: KSh40,000.00.KSh35,000.00Current price is: KSh35,000.00.
⚡ High-Frequency Vibration: Delivers up to 12,000 vibrations per minute (VPM), ensuring rapid air bubble removal and a smooth, professional concrete finish.
📏 6-Meter Flexible Shaft: The 6M (19.6ft) heavy-duty shaft provides extensive reach, allowing operators to work deep within tall columns or across large floor slabs without moving the drive unit.
🔨 45mm Heavy-Duty Head: The 45mm diameter “poker” head offers a wide radius of action, ideal for thick structural pours and large-scale construction projects.
🇯🇵 Japanese Precision: Built to Aico Japan standards, featuring a high-tensile steel flexible core and an abrasion-resistant rubber hose for maximum durability in harsh site conditions.
🔒 Universal Locking System: Typically equipped with a Dynapac (Hex-type) or pin-type coupling, making the shaft compatible with most standard electric motors and petrol engines.
🛡️ Site-Ready Durability: Designed to resist “site abuse,” with reinforced connections and a robust build that withstands high pressure and continuous use.

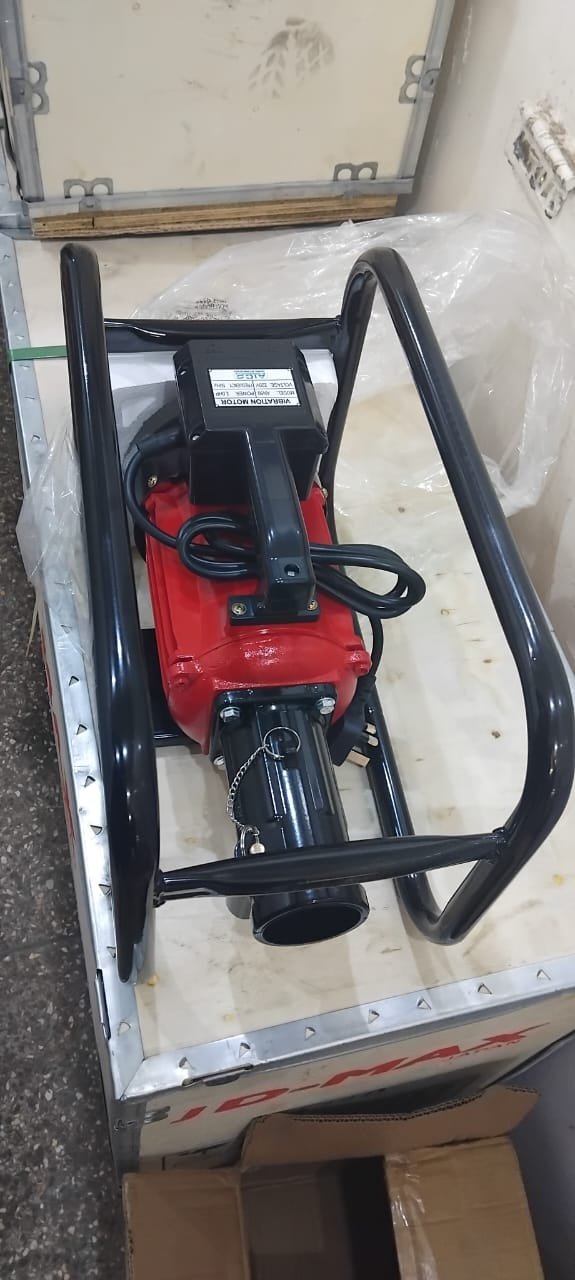

The AN-50 system consists of a high-torque electric drive unit and a 6-meter flexible “poker” shaft. This configuration is the industry standard for medium-to-large construction projects across Kenya due to its reliability and extended reach.

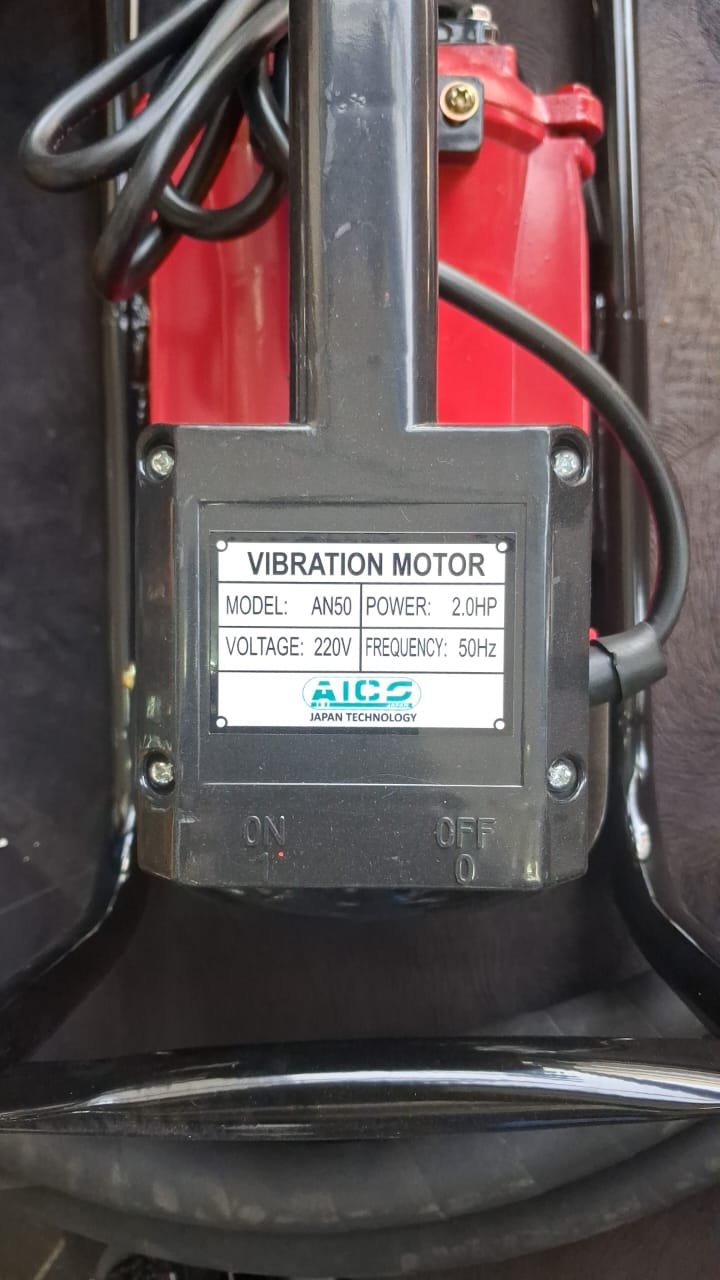

Motor Power: Typically powered by a 1.5kW to 2.2kW (2.0 – 3.0 HP) high-efficiency electric motor.
Rotation Speed: Operates at approximately 2,840 to 3,600 RPM, which the poker head converts into high-frequency vibrations.
Voltage Options: Available in Single-Phase (240V) for standard site power or Three-Phase (415V) for heavy industrial use.
Durability: Housed in a rugged, cast-iron or steel frame with rubber shock absorbers to minimize vibration transfer to the motor and operator.
45mm Head Diameter: This “large-bore” head provides a powerful vibration radius, allowing the operator to compact a larger volume of concrete in a single insertion.
6-Meter Length: The extra-long 6m (19.7ft) shaft is critical for vibrating tall columns, deep retaining walls, or reaching across wide floor slabs without relocating the motor.
Construction: Features a high-tensile steel flexible core protected by an oil-resistant, reinforced rubber hose designed to withstand the abrasive nature of wet concrete.
Universal Coupling: Uses a standard Dynapac (Hex-type) or pin-type locking mechanism for a secure, “no-slip” connection to the drive unit.
| Feature | Specification |
| Model | Aico Japan AN-50 / AVDY-45 |
| Vibration Frequency | 9,800 – 12,000 VPM (Vibrations Per Minute) |
| Shaft Diameter | 45mm |
| Shaft Length | 6 Meters |
| Drive Interface | Hexagon / Dynapac Type |
| Weight (Shaft) | Approx. 18kg – 22kg |
| Warranty | 12 Months |
100% genuine and certified products.
Manufacturer-backed warranty on all products.
Fast, reliable delivery to all regions nationwide.
