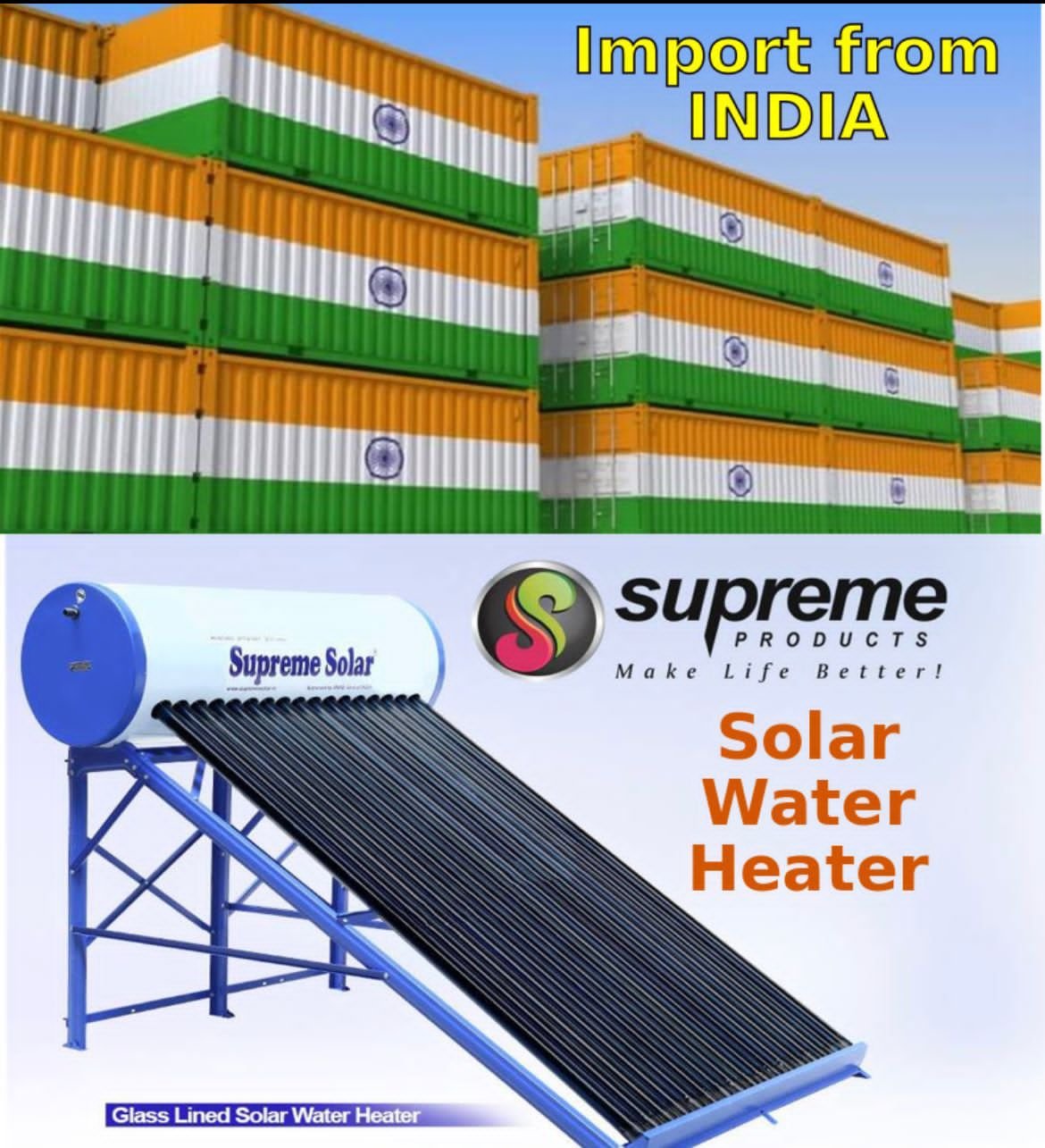

Supreme 300L Non-Pressurized Solar Water Heater: Engineered for Reliability & Hard Water Endurance
Experience the power of world-class engineering with the Supreme 300L Non-Pressurized Solar Water Heater. Proudly made in India by one of the world’s leading solar thermal manufacturers, this system is specifically designed to meet the rigorous energy demands of modern households and commercial businesses. Delivering a massive 300-liter capacity, the Supreme series is celebrated for its ability to handle hard water (borehole water) without the scaling and corrosion issues that plague standard solar heaters.
Operating on the natural Thermosiphon principle, this non-pressurized (gravity-fed) system is the most cost-effective way to secure 24/7 hot water. Whether you are in a highland region with cold mornings or a coastal area with salty air, the Supreme 300L is built to perform, offering a lifespan of over 15–20 years while reducing your electricity bills by up to 80%.
The Supreme “Hard Water” Advantage
The primary challenge for solar heaters in many regions is mineral buildup. The Supreme 300L addresses this with industry-leading technology:
-
Advanced Glass-Lining (GL): The inner tank features a specialized glass-lined/ceramic coating that protects the metal from chemical attack and scaling, even with water hardness up to 1300–4000 TDS.
-
High-Grade Stainless Steel: Constructed with food-grade SS-304 L grade steel, ensuring your water remains hygienic and the tank remains rust-free.
-
Corrosion Resistance: The outer body is powder-coated for extra protection against humidity and extreme weather conditions.
Technical Specifications & Performance
| Feature | Specification |
| Daily Capacity | 300 Liters (Ideal for 6–10 People) |
| System Type | Non-Pressurized (Gravity Flow) |
| Collector Technology | 3-Layer Evacuated Tube Collector (ETC) |
| Number of Tubes | 30 High-Efficiency Tubes (58mm x 1800mm) |
| Inner Tank Material | SS-304 / Heavy Duty Glass Lined Option |
| Outer Tank Material | Galvanized Powder Coated (Rust Proof) |
| Insulation | 50mm–65mm High-Density PUF (Polyurethane) |
| Heat Retention | 48 to 72 Hours |
| Max Water Hardness | Up to 1300–4000 TDS (Model Dependent) |
| Electrical Backup | Integrated 2kW / 3kW Port (Optional) |
Product Highlights
1. Triple-Layer Evacuated Tube Collectors (ETC)
Supreme uses advanced three-target vacuum tubes (SS/CU/AL coating) that capture over 95% of available solar radiation. These tubes act like a thermos; once heat is absorbed, it cannot escape back through the vacuum, ensuring high-temperature water even on cloudy or rainy days.
2. Superior Heat Retention (PUF Insulation)
The tank is insulated with 2.5-inch (approx. 65mm) high-density compressed PUF (Polyurethane Foam). This “heat-lock” technology is so effective that it can store hot water for up to 48–72 hours, allowing you to use today’s heated water even on a rainy tomorrow with minimal temperature loss.
3. Seamless Welding Technology
Utilizing precision CO2/Plasma welding and non-welding technology on key joints, Supreme tanks are built to prevent leaks. The seamless design ensures structural integrity and reduces the points where rust typically begins in cheaper alternatives.
4. Magnesium Anode Protection
Each 300L unit comes equipped with a long-lasting Magnesium Anode. This sacrificial rod attracts corrosive elements in the water, sacrificing itself to ensure the inner tank walls remain pristine and scale-free, drastically extending the system’s life.
5. Rapid Payback Period
With the rising cost of electricity, the Supreme 300L is an investment that pays for itself. Depending on your usage, the system typically achieves full ROI (Return on Investment) within 2 to 3 years, after which your hot water is essentially free for the next decade.
Ideal Applications
-
Large Residential Villas: Perfect for families with 3 to 5 bathrooms using gravity-fed showers.
-
Hard Water Areas: The best-in-class solution for properties relying on borehole or well water.
-
Hotels & Hostels: Scalable solutions for providing high-volume hot water at zero operational cost.
-
Industrial & Institutional: Providing hot water for staff quarters, clinics, and factory kitchens.
