Original price was: KSh23,000.00.KSh20,000.00Current price is: KSh20,000.00.
50-Meter Maximum Head: Delivers powerful vertical lift of up to 50 meters (165 feet), specifically engineered for deep boreholes and pushing water to high-elevation storage tanks.
High-Volume Flow Rate: Capable of pumping up to 3,000–3,500 Liters per Hour (3.5m³/h), ensuring a reliable water supply for large households, livestock, and commercial irrigation.
600W High-Torque BLDC Motor: Features an advanced Brushless DC (BLDC) motor that is more efficient, runs cooler, and lasts longer than traditional brushed motors with zero brush maintenance.
24V Solar Optimized: Perfectly matched for a 24V DC system (typically 2 x 300W–400W panels in series), providing an eco-friendly water solution with zero monthly electricity or fuel costs.
Full 304 Stainless Steel Construction: The entire pump body, rotor, and shaft are crafted from AISI304 food-grade stainless steel for maximum corrosion resistance in submerged borehole environments.
Integrated MPPT Technology: Built with a smart controller that utilizes Maximum Power Point Tracking to optimize energy harvest, allowing the pump to work effectively even in low-light or cloudy conditions.
Sand-Resistant Multi-Stage Impellers: Equipped with precision laser-welded stainless steel impellers and a built-in strainer to handle water with higher sediment levels without clogging.
Smart Dry-Run Protection: Includes automatic sensors and a float switch to shut down the pump when water levels are low, preventing motor overheating and extending the unit’s lifespan.
Ceramic Carbon Thrust Bearings: Features high-grade water-lubricated ceramic bearings that reduce friction and heat, ensuring stable performance during continuous peak-sun operation.
Plug-and-Play Installation: Includes a heavy-duty submersible cable and a compact 3-inch diameter design that fits easily into standard 4-inch or larger borehole casings.

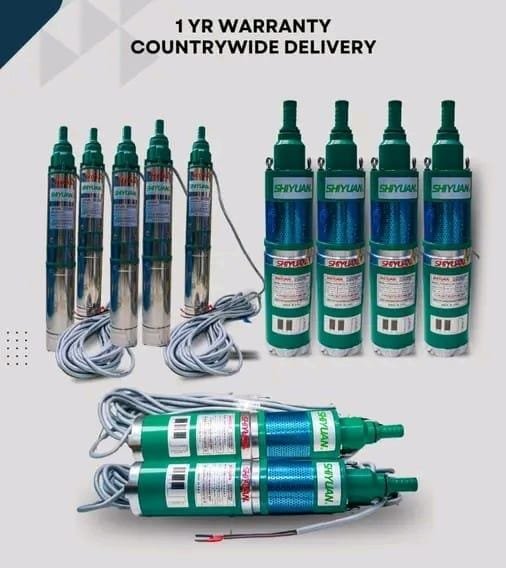

Master your water supply with the SHIYUAN 50M Solar Submersible Pump. Engineered for durability and high-vertical lift, this 24V 600W powerhouse is the flagship solution for deep wells and boreholes where standard pumps fall short. With a maximum head of 50 meters (165 feet), it is designed to deliver a consistent, high-volume water supply to medium-sized farms, rural communities, and large households in off-grid locations.
Powered by a high-efficiency Brushless DC (BLDC) motor, the SHIYUAN 50M maximizes every watt of solar energy harvested. By replacing expensive diesel generators and eliminating monthly electricity bills, this pump provides a sustainable, zero-operating-cost water solution that empowers your independence and pays for itself within the first two years of use.
The SHIYUAN 50M is built for high-demand environments and deep-well reliability:
Deep Well Specialization: Engineered to push water vertically up to 50 meters, making it perfect for properties with lower water tables.
Superior Flow Rates: Capable of moving up to 3,500 liters per hour, ensuring your storage tanks stay full even during peak demand periods.
Intelligent Inbuilt Controller: Features an integrated voltage stabilizer and MPPT (Maximum Power Point Tracking) technology to optimize performance during low-light mornings or cloudy afternoons.
Industrial Resistance: Crafted entirely from AISI304 stainless steel, providing total immunity to corrosion in mineral-heavy or borehole water.
| Feature | Specification |
| Model Number | SPDC24V-50-1 |
| Maximum Head (Lift) | 50 Meters (165 Feet) |
| Max Flow Rate | 3,000 – 3,500 Liters Per Hour (3.5m³/h) |
| Operating Voltage | 24V DC (Optimized for 2-Panel Series) |
| Power Rating | 600 Watts |
| Outlet Diameter | 25mm (1.0 inch) |
| Pump Diameter | 3 Inches (Fits standard 4-inch boreholes) |
| Motor Type | High-Efficiency Brushless DC (100% Copper Wire) |
| Included Cable | 20M Heavy-Duty Submersible Grade |
The heart of this pump is a 600W Brushless DC motor utilizing rare-earth permanent magnets. This design offers up to 50% more efficiency than traditional brushed motors. With no carbon brushes to replace and a cool-running design, the motor ensures years of maintenance-free operation.
The SHIYUAN 50M utilizes precision laser-welded stainless steel impellers. This multi-stage design is specifically balanced to provide the high pressure needed for a 50-meter lift while remaining resistant to the abrasive effects of silt and sand often found in new boreholes.
Constructed from food-grade 304 stainless steel, the pump body and rotor are built to last a lifetime submerged. This prevents the rust and structural degradation that can cause cheaper plastic-bodied pumps to fail within their first year of service.
The system includes built-in safeguards against over-voltage, under-voltage, and over-current. When paired with the included float switch, the pump automatically detects when your source is low or your tank is full, preventing the motor from “dry-running” and extending its functional life.
To withstand the friction of deep-well pumping, SHIYUAN uses ceramic carbon thrust bearings. These high-grade bearings are water-lubricated and dissipate heat effectively, ensuring the pump can run for extended hours under the intense tropical sun.
Livestock Watering: Providing high-volume, reliable water for large herds of cattle, sheep, or goats.
Commercial Horticulture: Powering large-scale drip irrigation systems for greenhouses and open-field farming.
Community Water Supplies: A sustainable source for schools, clinics, and villages with deep borehole requirements.
High-Lift Residential: Pumping from deep boreholes to elevated storage towers or hilltop properties.
