Description

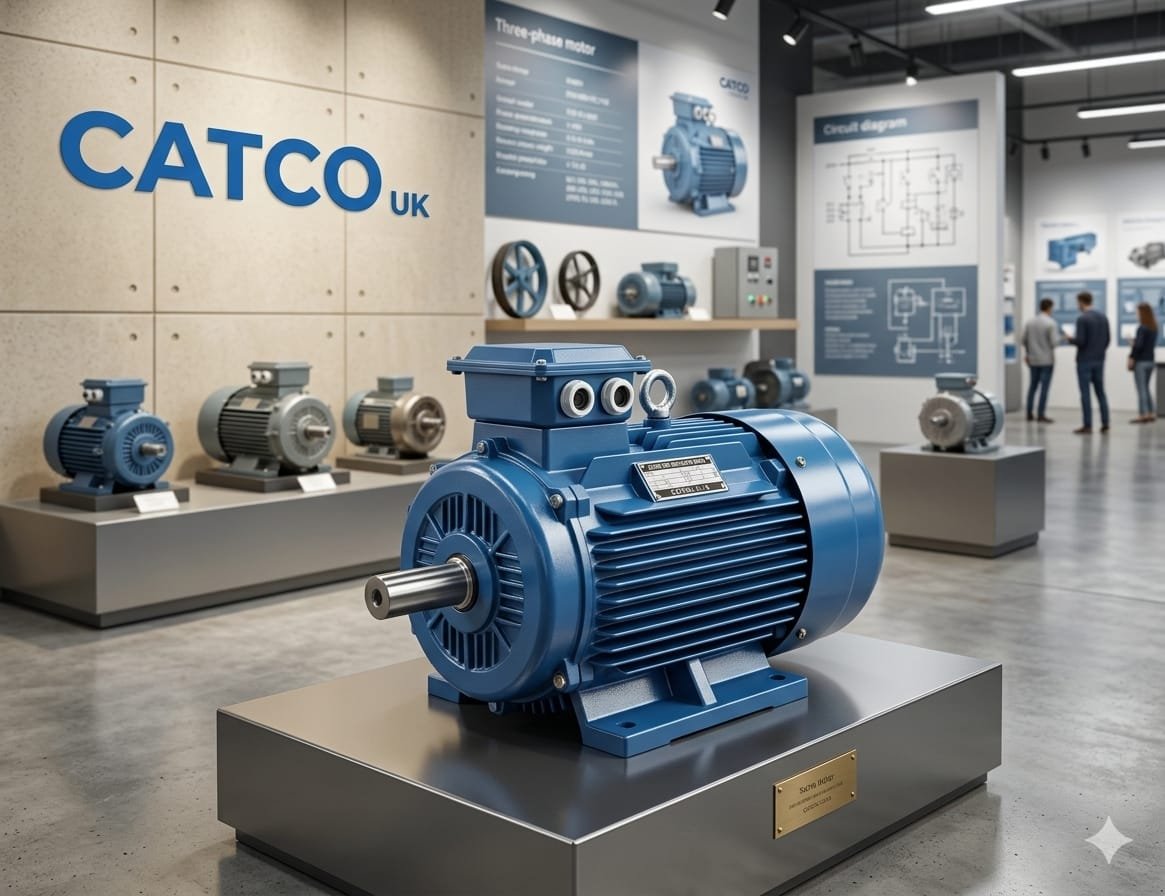

The CATCO UK Brand 100HP Three-Phase Motor is a premier industrial power unit engineered for high-performance and high-speed applications. Utilizing 100% pure copper windings, this motor is designed to provide maximum electrical efficiency (IE3 rated) and exceptional thermal resilience, making it a reliable choice for the most demanding 24/7 industrial environments.

## Technical Specifications

## Detailed Product Description

1. 100% Pure Copper Windings

The core of the CATCO UK motor consists of high-grade, pure copper windings. This choice of material ensures superior conductivity compared to aluminum-based alternatives, significantly reducing energy loss through heat ($I^2R$ loss). The windings are further protected by Class F insulation, which allows for a high heat tolerance of up to 155°C, ensuring longevity during continuous operation.

2. High-Speed 3000 RPM Performance

This 2-pole motor is optimized for high-speed rotation, making it the perfect driver for equipment that requires rapid velocity, such as:

• Industrial Blowers & Fans: For large-scale ventilation.

• Centrifugal Pumps: For high-pressure water or chemical transfer.

• Air Compressors: Providing the necessary RPM for efficient compression cycles.

3. Rugged & Reliable Construction

• Cast Iron Housing: The heavy-duty cast iron frame provides excellent structural rigidity, which is essential for dampening the vibrations inherent in high-speed 3000 RPM motors.

• TEFC Design: The Totally Enclosed Fan-Cooled system ensures that internal components are shielded from external contaminants like moisture, dust, and grime, rated to IP55 standards.

• Premium Bearings: Equipped with high-quality SKF or NSK bearings, which are specifically chosen to handle the high radial and axial loads of a 100HP output while maintaining smooth operation.

4. Versatility & Ease of Installation

The motor features multi-mount adjustable feet and an adjustable terminal box, providing technicians with the flexibility needed to install the unit in tight spaces or adapt it to various existing industrial frames. It is also inverter drive (VFD) rated, allowing for precision speed control when paired with a variable frequency drive.

## Operational Benefits

Efficiency Advantage: Being IE3 rated, this motor is designed to significantly lower electricity costs over its lifetime. The “Premium Efficiency” design means it converts more electrical energy into mechanical work with minimal waste.

Ideal Applications:

• Large-scale agricultural processing (mills and crushers).

• Industrial HVAC and refrigeration systems.

• Mining and material handling conveyors.

• High-pressure irrigation and firefighting pump systems.
