Description

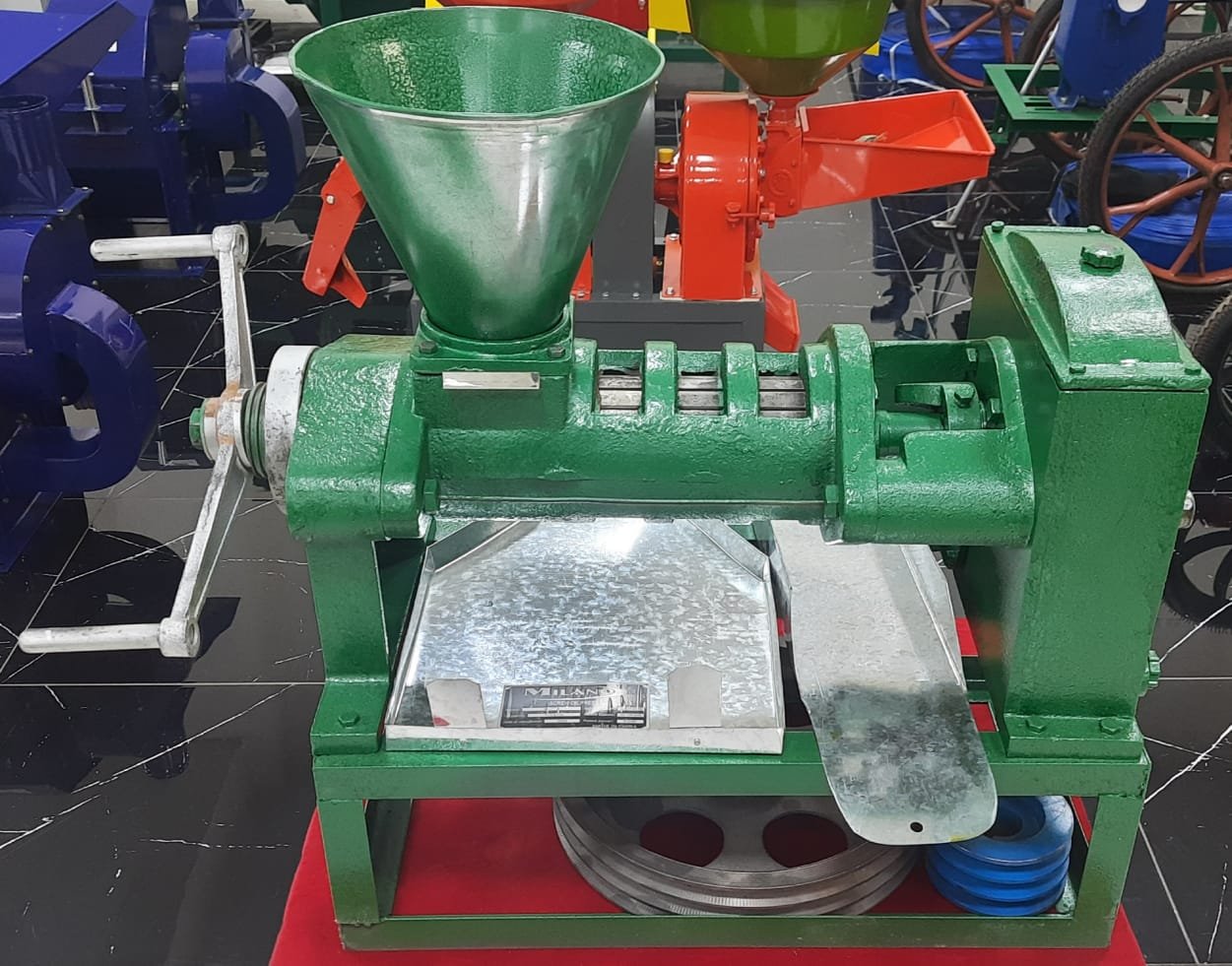

The MOP75 Milano Italia Commercial Oil Press is an industrial-grade screw expeller designed for medium-scale oil production. It serves as an ideal balance between the smaller domestic models and the massive MOP100, offering professional extraction efficiency for businesses processing up to 1.5 tons of raw material per day.

## Technical Specifications

• Model: MOP-75 (Milano Italia Series)

• Processing Capacity: 50–60 kg/hr (1.2 to 1.5 Tons per 24h)

• Motor Requirement: 7.5 HP to 10 HP (Electric or Diesel)

• Screw Speed: 35–40 RPM

• Residual Oil in Cake: < 6%

• Weight: Approximately 280kg – 320kg (excluding motor)

## Detailed Features & Construction

1. High-Performance Screw Expeller The MOP75 utilizes a multi-stage squeeze system. As the seeds move through the pressing cage, the volume of the chamber decreases, creating intense mechanical pressure. This ensures that even the hardest seeds, like sunflower or soybeans, are thoroughly pressed.

2. Durable Alloy Steel Components The pressing screw, rings, and bars are manufactured from high-carbon alloy steel that has undergone vacuum heat treatment. This makes them resistant to the high friction and heat generated during 24-hour operation, significantly extending the machine’s lifespan.

3. Cold & Hot Pressing Versatility

• Cold Press: Maintains a lower temperature to produce “virgin” oils, preserving natural flavors and nutritional value.

• Hot Press: Ideal for maximizing the volume of oil extracted by pre-heating the seeds, reducing the viscosity of the oil for a faster flow.

4. Optimized Gearbox Equipped with a heavy-duty reduction gearbox, the MOP75 provides consistent torque. This ensures the machine doesn’t “stall” or jam when processing seeds with high fiber content or lower moisture levels.

5. Clean & Efficient Output The design includes a precision-slotted cage that allows oil to flow out freely while keeping the “cake” (waste material) dry and compressed. This cake can then be sold as high-protein animal feed, creating a secondary revenue stream.

## Ideal Applications

The MOP75 is highly effective for a wide range of oil-bearing crops, including:

• Nuts: Groundnuts (Peanuts), Walnuts, Almonds.

• Seeds: Sunflower, Sesame, Rapeseed, Mustard, Cottonseed.

• Legumes: Soybeans.

• Tropical: Copra (Coconut).
