Description

KEY FEATURES

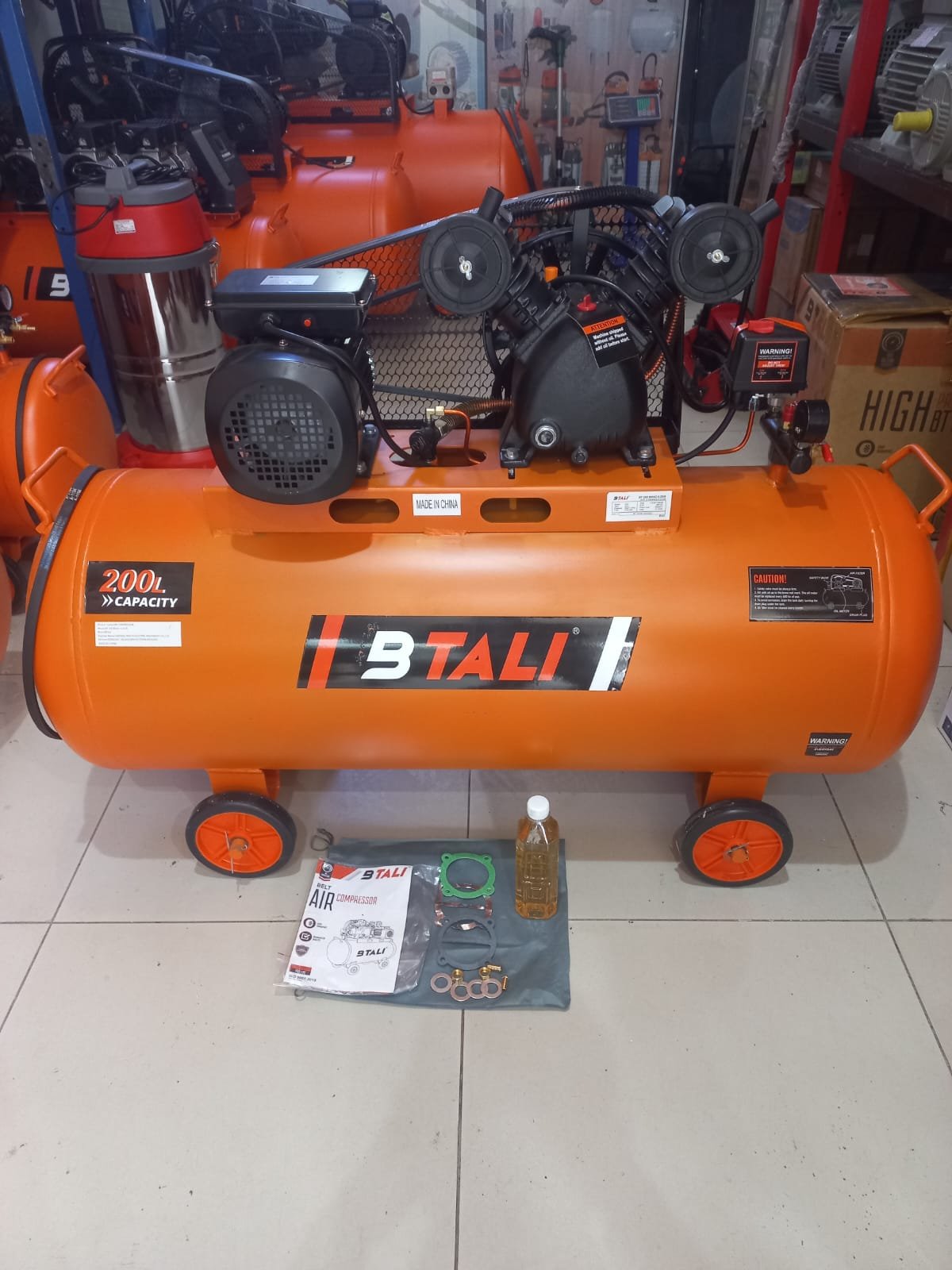

1. High-Volume Air Storage

• 200-Liter Pressure Vessel: The massive tank capacity provides a significant buffer of compressed air. This is ideal for tasks that require high “burst” volumes, such as sandblasting, continuous spray painting, or running multiple air tools simultaneously.

• Reduced Motor Wear: Because the tank is so large, the motor turns on less frequently (lower cycle rate), which significantly extends the overall lifespan of the electrical components.

2. Professional 2-Piston Pump

• Twin-Cylinder Design: Features two heavy-duty pistons that compress air more efficiently than single-cylinder models.

• Cast Iron Construction: The pump block is typically made from high-grade cast iron, offering superior heat dissipation and durability compared to aluminum alternatives.

• Slow-Running RPM: The belt-drive configuration allows the pump to operate at a lower speed while maintaining high output, which reduces friction, heat, and mechanical noise.

3. Power & Pressure

• 3HP Induction Motor: A high-torque, reliable $3\text{ HP}$ motor provides the necessary force to drive the twin pistons effectively under full load.

• 8-Bar (116 PSI) Constant Output: Delivers a steady pressure flow suitable for the vast majority of industrial air tools and machinery.

4. Enhanced Cooling & Lubrication

• Multi-Blade Flywheel: The large drive wheel doubles as a cooling fan, forcing air over the cylinders during operation to prevent overheating during long shifts.

• Oil-Lubricated System: Features a large oil sump with a clear sight glass, allowing for quick oil level checks and ensuring the internal components stay perfectly lubricated.

5. Built for the Workshop

• Heavy-Duty Guard: A reinforced metal wire belt guard protects the user from moving parts while allowing maximum airflow for cooling.

• Dual Outlet Configuration: Often equipped with two air outlets (one regulated, one direct) to allow for the connection of two tools or lines at once.

• Stable Mobility: Despite its size, it is equipped with heavy-duty wheels and a reinforced handle, though it is primarily designed as a stationary or semi-mobile unit for workshop floors.

Technical Summary Table
